Interactions

Interactions are clickable hitboxes. Players can right-click (interact with) or left-click (attack) them to trigger your commands.

Entity Creation

An Interaction always creates an interaction entity. Like Locators and Cameras, it isn’t a passenger: Animated Java teleports it into place every tick (see Floating Entities).

Size

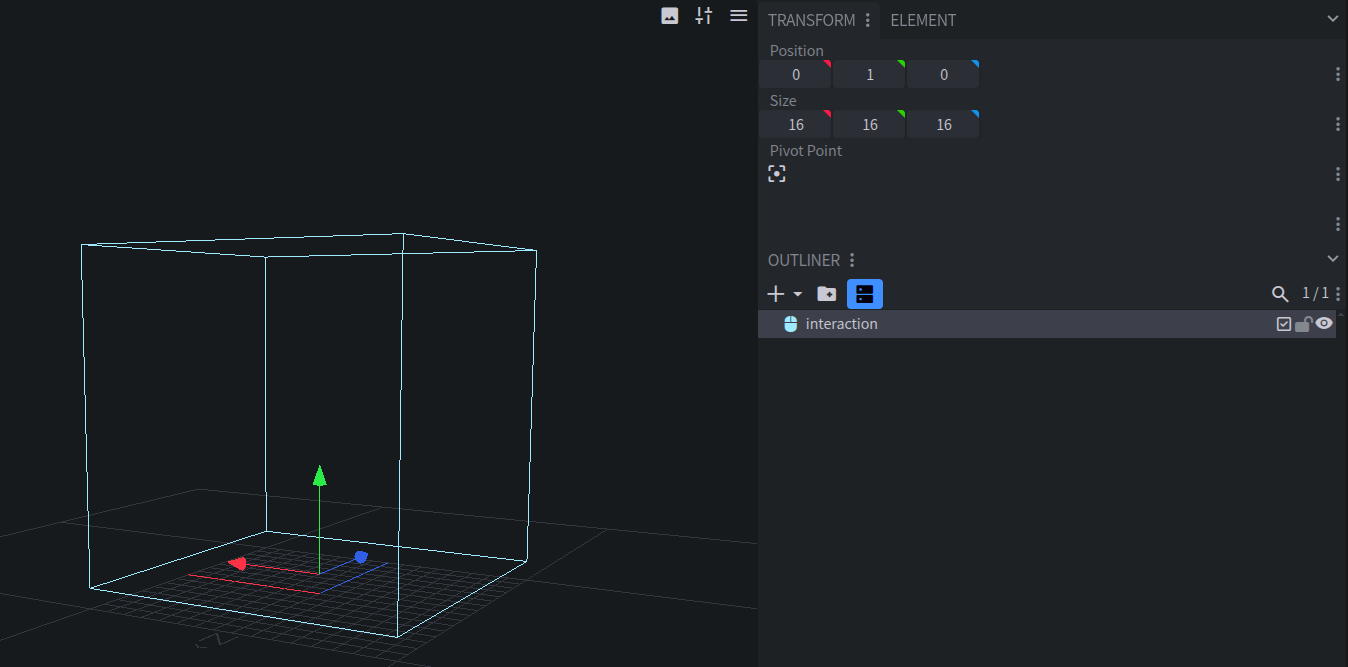

Resize the Interaction in the editor to set its hitbox. Its width covers both the X and Z axes, and 16 pixels is one block.

Interaction hitboxes are always aligned to the world’s axes. They follow the rig’s movement and rotation, but the box itself never turns.

Interaction Config

Right-click an Interaction in the Outliner and choose Interaction Config. All of its functions support MC-Build syntax.

• Response

  Whether interacting with it plays a response: the player’s hand swings, or an attack sound plays.

• On-Summon Function

  Commands that run as and at the Interaction when the rig is summoned.

• On-Interact Function

  Commands that run as the Interaction when a player right-clicks it. Use execute on target to select that player.

• On-Attack Function

  Commands that run as the Interaction when a player left-clicks it. Use execute on attacker to select that player.

• On-Remove Function

  Commands that run as and at the Interaction when the rig is removed.

• On-Tick Function

  Commands that run as and at the Interaction every tick.

Interaction Keyframes

Interactions can be moved with position keyframes, and have Function keyframes like Locators do.

Accessing Interactions In-Game

Use the Interaction functions:

# Run a command as the "hitbox" Interaction
execute as @e[tag=my_pack.my_rig.root] run function my_pack:my_rig/as_interaction {name: "hitbox", command: "say I was targeted!"}

# Spawn particles at every Interaction
execute as @e[tag=my_pack.my_rig.root] run function my_pack:my_rig/at_all_interactions {command: "particle minecraft:crit ~ ~ ~"}

You can also select one directly with its <blueprint_id>.interaction.<name> tag.

Plugin Mode

Interactions have no config in Plugin mode. Use your plugin’s API to add behavior to them instead.
